Specifications

• Size (w x d x h) (in mm) 312 x 321 x 289
• No. of pockets 1 + 1 (reject)
• Stacker capacity Max. 200 notes
• Display type 240 x 144 graphic LCD (Dot)
• Currencies available 1 (available up to 3)
• Banknote thickness range  (in mm) 0.08 ~ 0.12
• Preset Batch number 1 – 200
• Power requirements 100~240 VAC, 50-60 Hz
• Operational requirements 10 to 40 deg C / 0 to 85 RH
• Weight (approx.) (in kg) 16
• Hopper capacity 500 notes
• Reject Pocket capacity Max. 100 notes
• Connectivity Interfaces 2 RS232C port (9 pin D-SUB & modular jack) and 2 USB  (type A & type B)
• Banknote size range (in mm) W: 100 ~ 185, H: 60 ~ 90
• Counting speed (approx.) 700 / 1200 Notes/min
• Discrimination mode Mixed/ Single/ Face/ Orient/Count/ Fitness/OCR
• Counterfeit detection MG, UV, IR
• Power consumption Standby 13 W; Operation: 120 W
• Warranty 1 Year

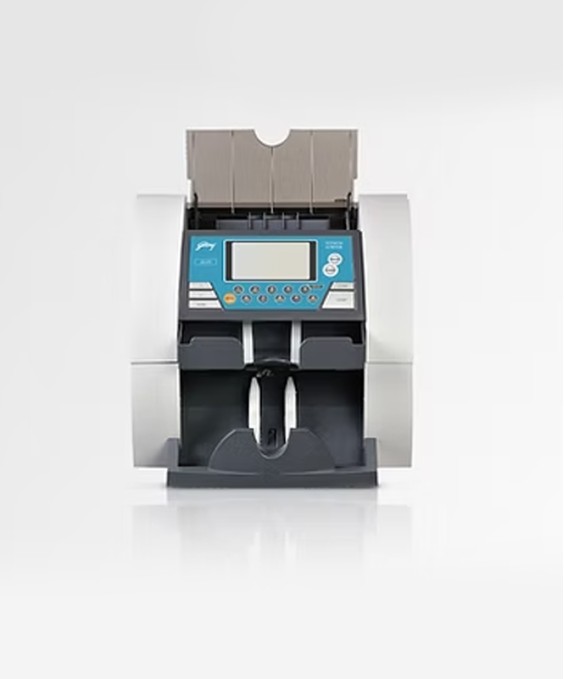

 Godrej Security Solutions Currency 1 + 1 Pocket Sorter , Presenting an intelligent and reliable Currency Sorting Machine - The Godrej Fitness Sorter GS-2PX. Its Dual Image Processing Technology identies counterfeit notes and recognises different currency denominations. A modern design with a fully graphic LCD and user-friendly interface, assures a more comfortable and eficient working environment for its users. The reject pocket allows the user to perform daily cash-process without any interruptions. Suspect, counterfeit and unrecognised notes are automatically diverted to the reject pocket, assuring continuous operation.

Features :

• Full fitness sorting Detects notes with grafti or which are taped, soiled, torn, missing corners, have holes etc.
• Enhanced counterfeit detector Equipped with Magnetic sensor, UV sensor and IR sensor
• User friendly interface Easy menu and setting
• Various operation modes Mixed/ Single/ Face/ Orient/ Count/ Fitness/ OCR
• Easy upgrade All upgradations can be done using USB memory
• Large graphic LCD Screen which can display more information at once
